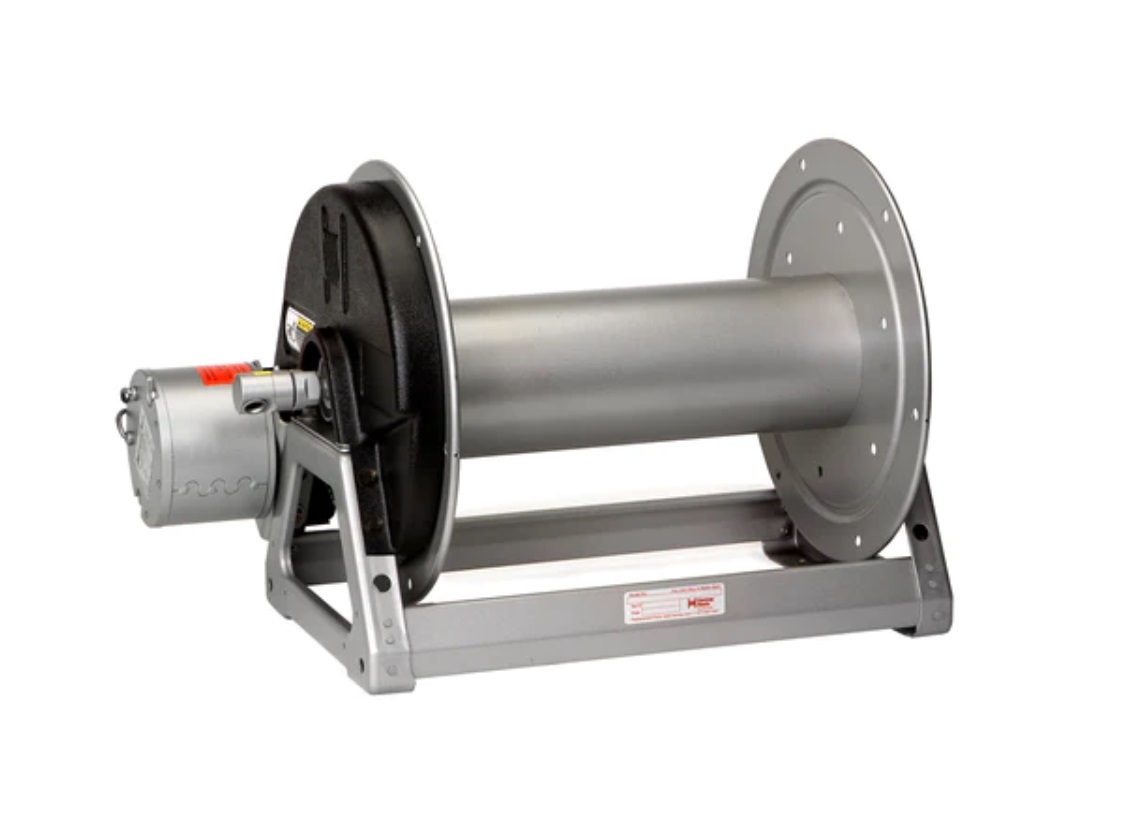

E1520-17-18H5M Hannay Electric 12″ Hose Reel (5000 PSI Max)

$900.00

SKU: E1520-17-18H5M Category:

Description

**FREE SHIPPING**

Overview:

Upgrade the internal pipe to 5000 psi with the E1520-17-18H5M Hannay Electric Hose Reel. With a total width of 12″ between the disks and the capability of handling hoses between 1/4″ and 5/8″ in diameter, it’s versatile for your spraying needs. Its capacity is up to 300 feet of 3/8″ diameter hose or up to 200 feet of 1/2″ diameter hose. Includes, motor, push button and solenoid.

Features:

  • Rewind: Electric
  • Construction: Carbon steel, e-coated and then finished with a modified high performance acrylic enamel paint (metallic graphite color)
  • Distance between discs: 12″
  • 1/3 hp electric motor (12V power source needed)
  • Standard inlet: 90° ball bearing swivel joint, 1/2″ female NPT threads
  • Standard outlet: 1/2″ female NPT threads
  • Optional rollers available: FH3 (open top) and C roller (fully enclosed) assemblies available to mount on hose reel
  • Standard pressures to 5000 psi (207 bar), available up to 10,000 psi (690 bar) must specify
  • Temperatures from +20° F to +400° F (-7° C to +204° C)
  • Consult factory for other pressures and temperatures
  • Hose/Cable Size: 1/4″ to 5/8″ ID
  • Capacity of Reel: 125 to 350 feet (83.8 to 152.4 meters) depending on ID of hose
  • 1/4″ ID hose capacity: 350 feet
  • 3/8″ ID hose capacity: 300 feet
  • 1/2″ ID hose capacity: 200 feet
  • 5/8″ ID hose capacity: 125 feet
  • Approximate weight: 47 lbs
