Hannay Manual 18″ Hose Reel (5000 PSI Max)

$425.00

SKU: 1526-17-18H5M Category:

Description

**FREE SHIPPING**

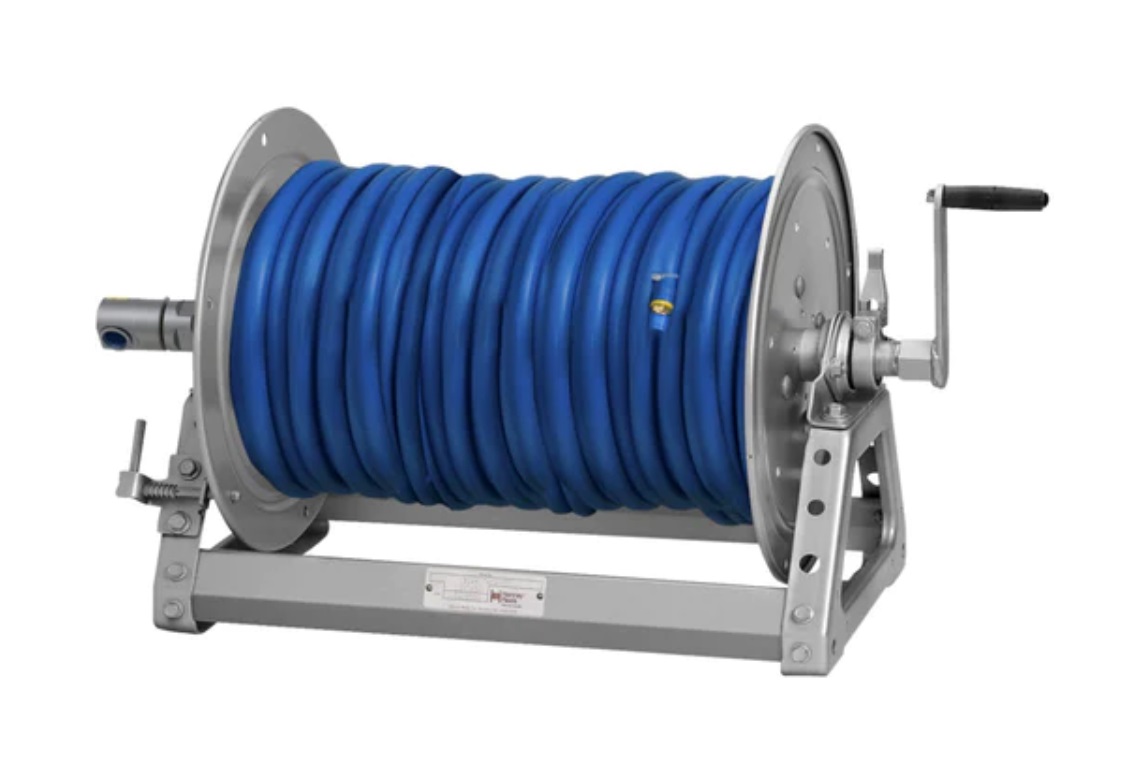

Outfit your sprayer with the 1526-17-18H5M (upgraded to handle up to 5000 psi) Hannay 18″ Manual Hose Reel. This reel includes a cam-lock drag brake and spring actuated pin lock with the option of roller guides for more efficient reeling. While it is a manual reel, an electric hydraulic or compressed air motor can make operation easier.

**Hose shown on reel in picture sold separately**

Features:

  • Rewind: Manual hand crank
  • Construction: Carbon steel, e-coated and then finished with a modified high performance acrylic enamel paint (metallic graphite color)
  • Distance between discs: 18″
  • Standard inlet: 90° ball bearing swivel joint, 1/2″ female NPT threads
  • Standard outlet: 1/2″ female NPT threads
  • Optional rollers available: FH3 (open top) and C roller (fully enclosed) assemblies available to mount on hose reel
  • Standard pressures to 5000 psi, available up to 10,000 psi (690 bar) Ð must specify
  • Temperatures from +20° F to +400° F (-7° C to +204° C)
  • Consult factory for other pressures and temperatures
  • Hose/Cable Size: 1/4″ to 5/8″ ID
  • Capacity of Reel: 200 to 500 feet depending on ID of hose
  • 1/4″ ID hose capacity: 500 feet
  • 3/8″ ID hose capacity: 400 feet
  • 1/2″ ID hose capacity: 300 feet
  • 5/8″ ID hose capacity: 200 feet
  • Approximate weight: 31 lbs

Free Shipping on single orders of Hose Reels will ship via UPS. If your item is damaged in shipping. It could take 3-6 weeks to get the claim handled via UPS. If you can’t risk this with the order, we recommend shipping it via Freight or ordering 3+ reels to make it ship freight. Freight packages have a higher chance of making it to you undamaged than shipping via standard UPS.
